Spring Boot: JPA & DI

Spring Boot JPA and Dependence Injection

Spring Boot JPA

📘 JPA

JPA stands for Java Persistence API.

It is a Java specification for managing, persisting, and accessing relational data in Java applications.

JPA is a standard API for ORM (Object-Relational Mapping) and provides a way to map Java objects to relational databases.

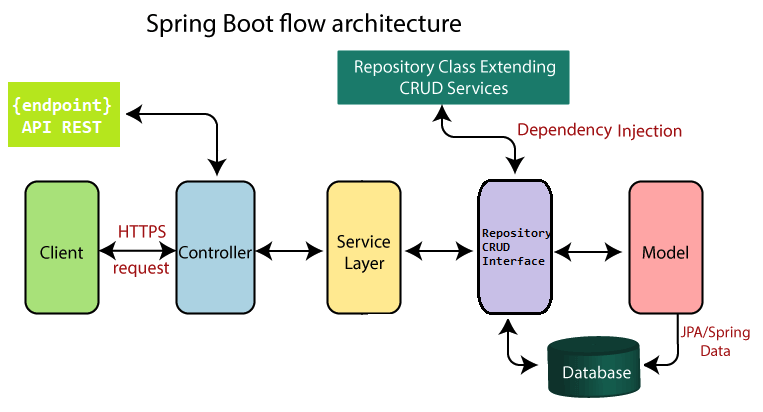

Spring Boot Request-Response Cycle

• Spring Data JPA
• Accessing Data with JPA

1 Overall

In Spring Boot, JPA is used to interact with databases. It provides a convenient and powerful way to perform CRUD operations on database tables and provides a lot of useful features such as caching, lazy loading, and automatic management of transaction.

Spring Boot provides a number of auto-configuration options for JPA, so you don’t have to set up everything from scratch.

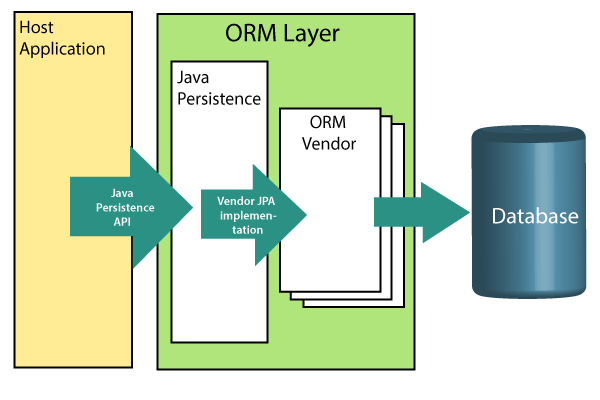

Spring Boot JPA

The spring-boot-starter-data-jpa is a starter for using Spring Data JPA with Hibernate. It provides a convenient way to create JPA repositories, which can be used to perform CRUD operations on the database.

<!-- https://mvnrepository.com/artifact/org.springframework.data/spring-data-jpa -->
<dependency>
    <groupId>org.springframework.data</groupId>
    <artifactId>spring-data-jpa</artifactId>
    <version>3.0.4</version>
</dependency>

When using JPA in Spring Boot, you can use the @Entity annotation to define a class as a JPA entity, and the @Repository annotation to define a class as a JPA repository. This allows you to use the JPA repository to perform CRUD operations on the corresponding database table.

Spring Data JPA, part of the larger Spring Data family, makes it easy to easily implement JPA based repositories. This module deals with enhanced support for JPA based data access layers. It makes it easier to build Spring-powered applications that use data access technologies.

Features:

• Sophisticated support to build repositories based on Spring and JPA
• Support for Querydsl predicates and thus type-safe JPA queries
• Transparent auditing of domain class
• Pagination support, dynamic query execution, ability to integrate custom data access code
• Validation of @Query annotated queries at bootstrap time
• Support for XML based entity mapping
• JavaConfig based repository configuration by introducing @EnableJpaRepositories.

Basic Vocabulary

Acronym	Definition
ORM	Object-Relational Mapping, a programming technique for converting data between incompatible type systems in object-oriented programming languages and relational databases.
DAO	Data Access Object, a design pattern that provides an abstract interface to access data from a database or other persistent storage mechanism.
JPA	Java Persistence API, a specification for object-relational mapping in Java that provides a standard way to map Java objects to relational databases.

2 Spring Data Repositories

Notepring Data Repositories

Spring Data Repositories provide a high-level, generic abstraction for data access that allows developers to work with data from various data sources, including relational databases, NoSQL databases, and other data stores, using a consistent and simplified API.

import org.springframework.data.repository.CrudRepository;
import java.util.Optional;
//@Repository
public interface BookRepository extends CrudRepository <Book, Long> {
    // custom query methods defined here
    Optional<Book> findBookByTitle(String title);
    Optional<Book> deleteBookByTitle(String title);
}

The repositories eliminate the need for boilerplate code and allow developers to define query methods and dynamic queries in a straightforward manner.

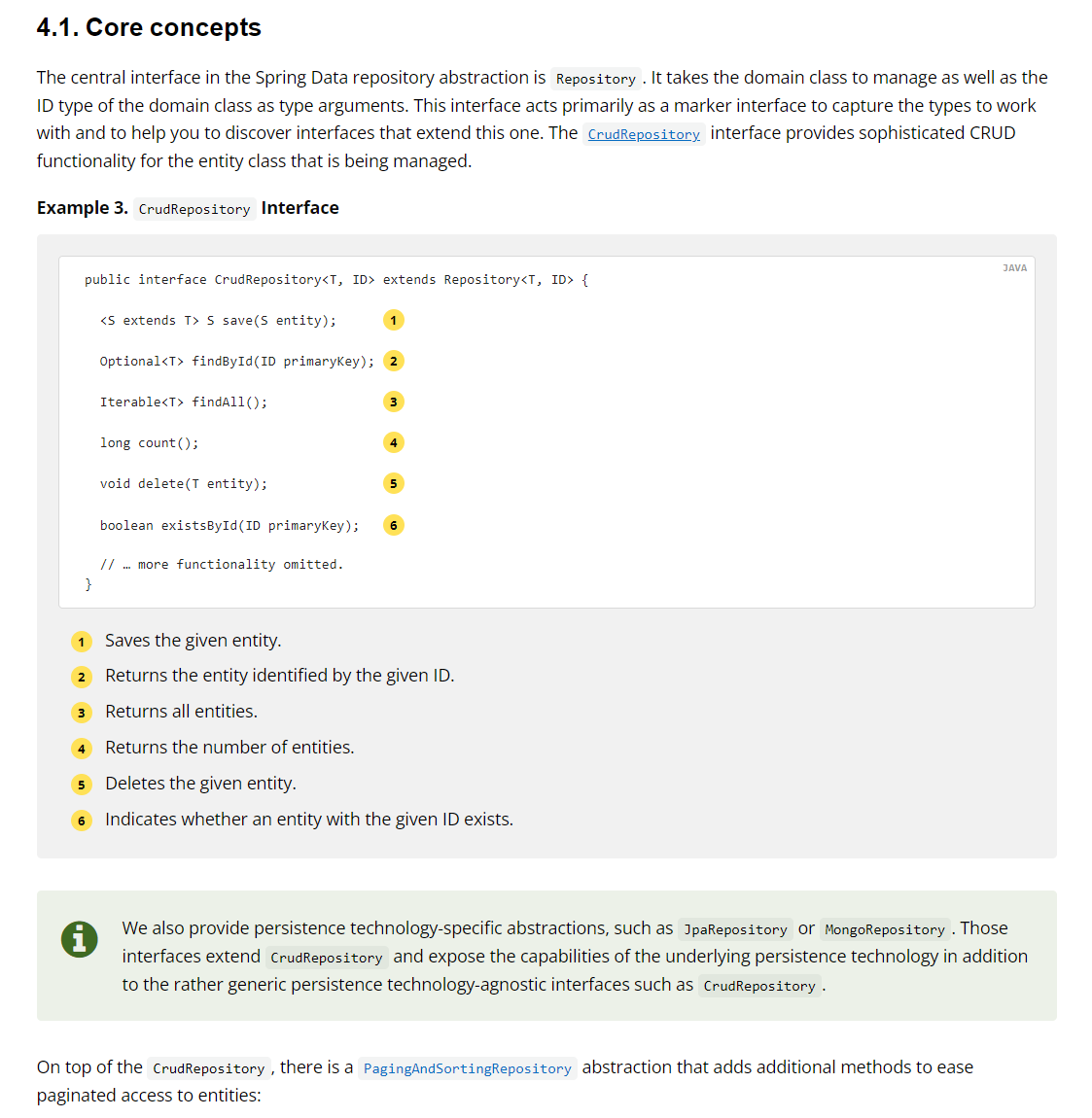

Spring Boot Repositories - Core concepts

Spring Data Repositories also provide support for pagination, sorting, and auditing, as well as integration with other Spring technologies, such as Spring MVC and Spring Security.

Spring Data Repositories simplify data access and enable rapid development of data-driven applications.

3 Using CrudRepository

CrudRepository is an interface provided by Spring Data that defines a standard set of methods for performing CRUD (Create, Read, Update, and Delete) operations on entities.

The interface provides basic data access functionality and can be extended to provide additional functionality as needed.

BookRepository:

import org.springframework.data.repository.CrudRepository;
import java.util.Optional;
//@Repository
public interface BookRepository extends CrudRepository <Book, Long> {
    // custom query methods defined here
    Optional<Book> findBookByTitle(String title);
    Optional<Book> deleteBookByTitle(String title);
}

We use the @Autowired annotation to inject an instance of BookRepository into our Spring application, Spring’s dependency injection container will automatically instantiate a concrete implementation of the BookRepository interface and inject it into our application’s bookRepository object.

This implementation is typically a proxy object that provides the required functionality for data access.

BookService:

import java.util.Optional;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class BookService {

    @Autowired
    BookRepository bookRepository;

    public Iterable<Book> getAllBooks() {
        return bookRepository.findAll();
    }

With this object, we can use the methods defined in the CrudRepository interface, such as save(), findOne(), findAll(), and delete(), to perform CRUD operations on Book entities.

4 JPA, Dependency Injection and Repository

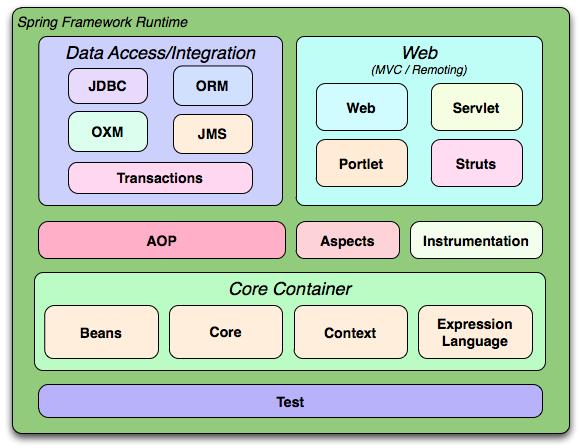

Spring Boot Overview

• Introduction to Spring Framework

The Java Persistence API (JPA) is a popular Java framework used for Object-Relational Mapping (ORM). The JPA framework provides the @Repository annotation to identify the DAO (Data Access Object) layer of an application.

The@Repository annotation is a good example of the terms Dependency Inversion Principle (DIP), Dependency Injection (DI), and Inversion of Control (IoC) container.

The Dependency Inversion Principle (DIP) is a software design principle that states high-level modules should not depend on low-level modules, but both should depend on abstractions.

Note@Repository

The @Repository annotation follows this principle by allowing the DAO layer to depend on an interface (abstraction) instead of directly depending on a concrete implementation.

This allows for easier maintenance, testing, and flexibility in changing the implementation of the DAO layer.

Dependency Injection (DI) is a design pattern that implements the DIP by injecting dependencies (objects or interfaces) into a class at runtime.

In the case of the @Repository annotation, the dependency is the EntityManager object, which is injected into the DAO class using the @PersistenceContext annotation.

This allows the DAO to be decoupled from the EntityManager implementation and provides flexibility to use different implementations of the EntityManager.

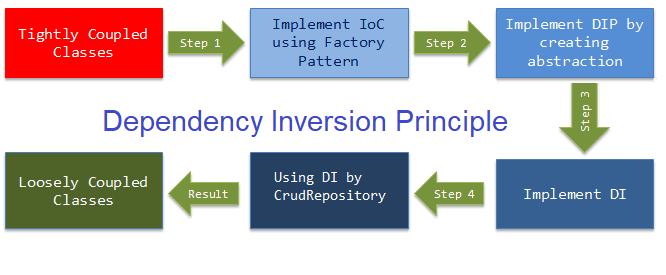

DIP - Dependency Inversion Principle

Inversion of Control (IoC) container is a pattern used to manage the lifecycle of objects and their dependencies. It allows the framework to control the creation, configuration, and destruction of objects, rather than having the application manage them directly.

The @Repository annotation is an example of an IoC container because it is managed by the Spring framework. The framework handles the instantiation and injection of dependencies, such as the EntityManager, into the DAO classes.

In this case, the high order modules are the business logic layer and the low order modules are the data access layer. The business logic layer depends on the data access layer through an abstraction, and the data access layer depends on the EntityManager implementation through injection by the IoC container. This allows for a separation of concerns and easier maintenance and testing of each layer independently.

5 Annotations

JPA Annotations

Annotation	Description
@Entity	Specifies that the class is an entity and will be managed by the EntityManager.
@Table	Specifies the database table name for the entity.
@Id	Specifies the primary key field of the entity.
@GeneratedValue	Specifies how the primary key should be generated.
@Column	Specifies the database column name for a field.
@JoinColumn	Specifies the join column when using a relationship.
@OneToMany	Defines a one-to-many relationship between two entities.
@ManyToOne	Defines a many-to-one relationship between two entities.
@ManyToMany	Defines a many-to-many relationship between two entities.
@JoinTable	Specifies the join table for a many-to-many relationship.
@Embedded	Specifies that the field should be mapped as an embedded object.
@Transient	Specifies that the field should not be persisted to the database.

6 Example

• Library1 code github
• Library1 docs
