📘 React JS Lab#RE05-3: chat & AWS

In this lab, we will be using:

  • the react-router-dom, which is a package with bindings for using React Router in web applications:
  • websockets, provided by ReactJS framework and:
    • useState
    • useEffect
    • useContext
  • AWS, Amanzon Web Services, architecture as a server-side:
    • Lambda
    • DynamoDB
    • API Gateway
    • Cloudwatch


Reference:

General architecture

General architecture

1 Backend: AWS

1.1 Free-tier

The AWS Free Tier is a program offered by Amazon Web Services (AWS) that provides users with access to a range of AWS services at no cost for a limited period.

  • It includes various services like Amazon EC2, Amazon S3, Amazon RDS, and more.
  • The Free Tier allows users to explore and experiment with these services, making it ideal for developers, startups, and small businesses.
  • The duration and usage limits vary depending on the service, but typically last for 12 months.
  • It’s a great opportunity to get hands-on experience with AWS and evaluate its capabilities without incurring any initial costs.

Be careful with the free-tier

Be careful with the free-tier

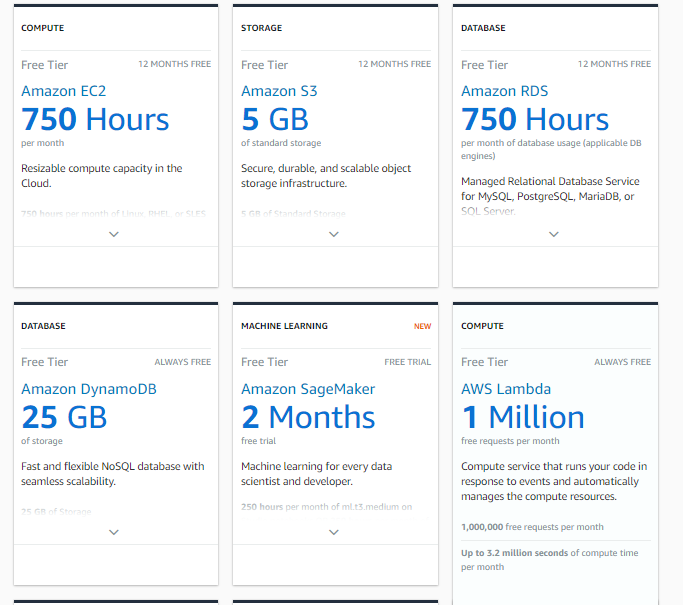

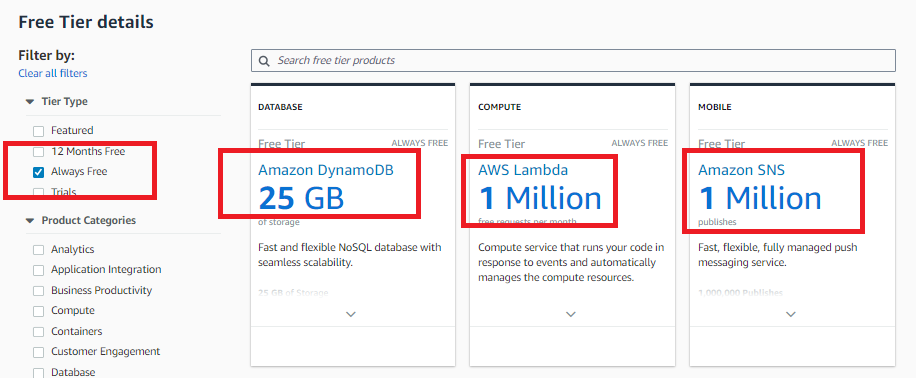

AWS free-tier

AWS free-tier

AWS free-tier

AWS free-tier

AWS free-tier

AWS free-tier

2 AWS API Gateway

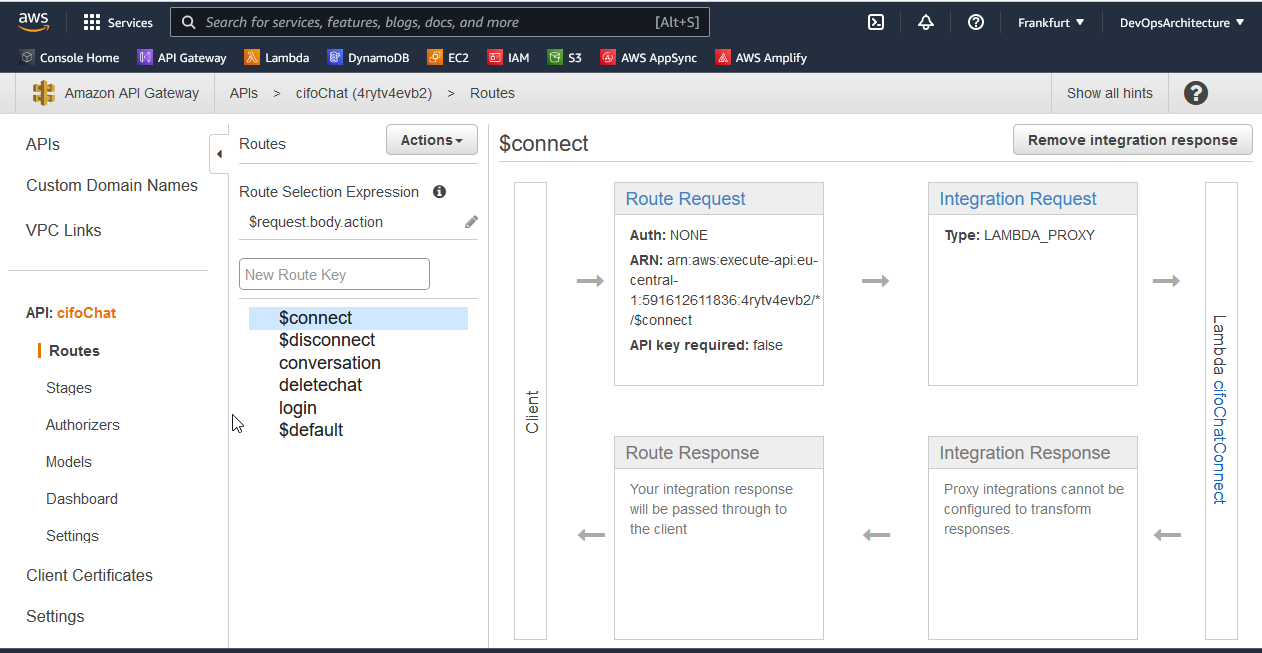

AWS API Gateway

AWS API Gateway

Amazon API Gateway is a fully managed service by Amazon Web Services (AWS) that enables developers to create, publish, and manage APIs for their applications. It acts as a front door, allowing clients to securely access backend services, such as AWS Lambda functions or EC2 instances, through a consistent API interface. API Gateway provides features like authentication, authorization, request throttling, caching, and monitoring, which help enhance security, performance, and scalability. It also supports various API integration options and allows customization through API Gateway extensions. With API Gateway, developers can easily build and scale their APIs, making it a crucial component for building modern, serverless architectures on AWS.

AWS API Gateway

3 AWS Lambdas

AWS Lambda is a serverless, event-driven compute service that lets you run code for virtually any type of application or backend service without provisioning or managing servers. You can trigger Lambda from over 200 AWS services and software-as-a-service (SaaS) applications and only pay for what you use.

Official documentation:

Be careful with the chosen version, with NosdeJS as a server:

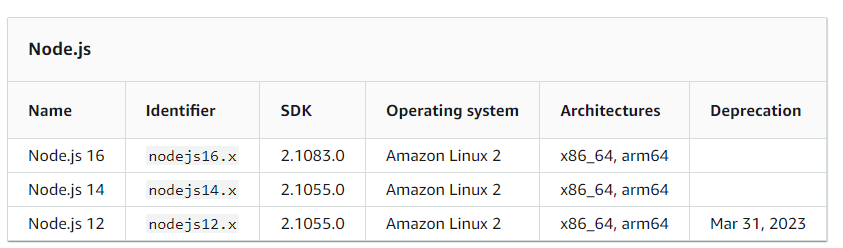

Node version, 12 is deprecated, use 14

Node version, 12 is deprecated, use 14

3.1 MyChat: lambdas

Code Lambda Conversation

JSON websocket example scheme:

{
 "action": "conversation",
 "chatId": "DEVOPS",
 "userId": "ALBET#1666862612315",
 "connectionid": "aqEgvdwRFiACEYw=",
 "requesttime": "27/Oct/2022:09:23:31 +0000",
 "sourceip": "83.247.137.2",
 "text": "ASDFA",
 "timestampEpoch": 1666862612315
}

4 AWS DynamoDB

AWS DynamoDB is a fully managed, serverless, key-value NoSQL database designed to run high-performance applications at any scale. DynamoDB offers built-in security, continuous backups, automated multi-Region replication, in-memory caching, and data import and export tools.

DynamoDB

5 AWS IAM Permissions & Billing Console

IAM Permissions & Billing Console
